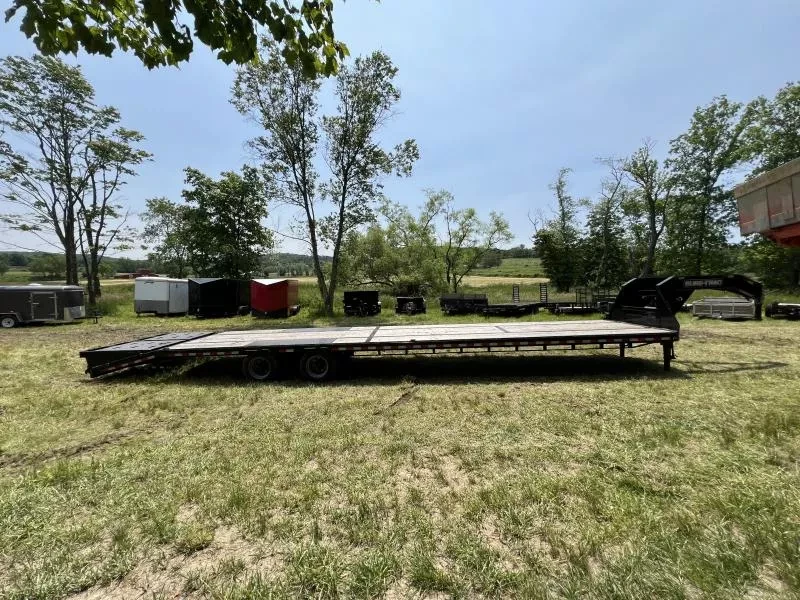

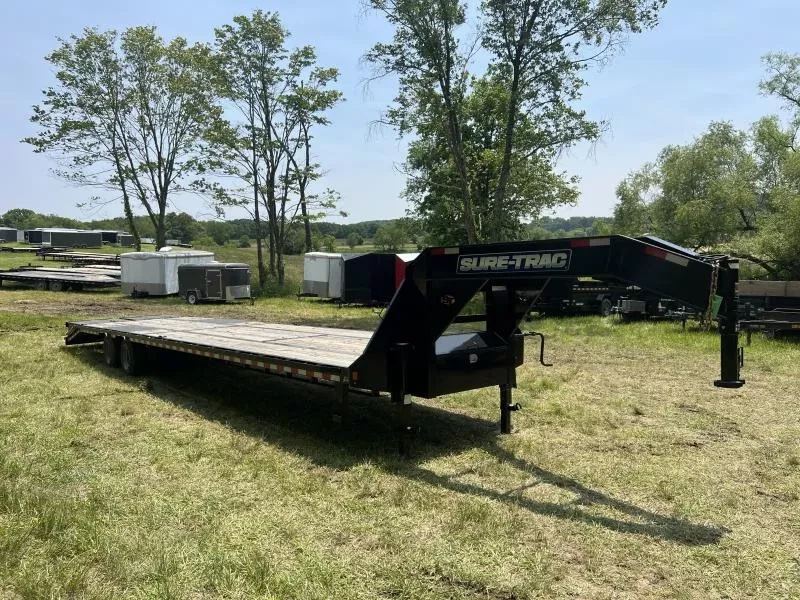

2023 Sure-Trac ST-HDO10240-300G Gooseneck Deckover Trailer – 102″ x 30′, 30,000 GVWR, 15K Axle Upgrade, Pierced I-Beam Frame

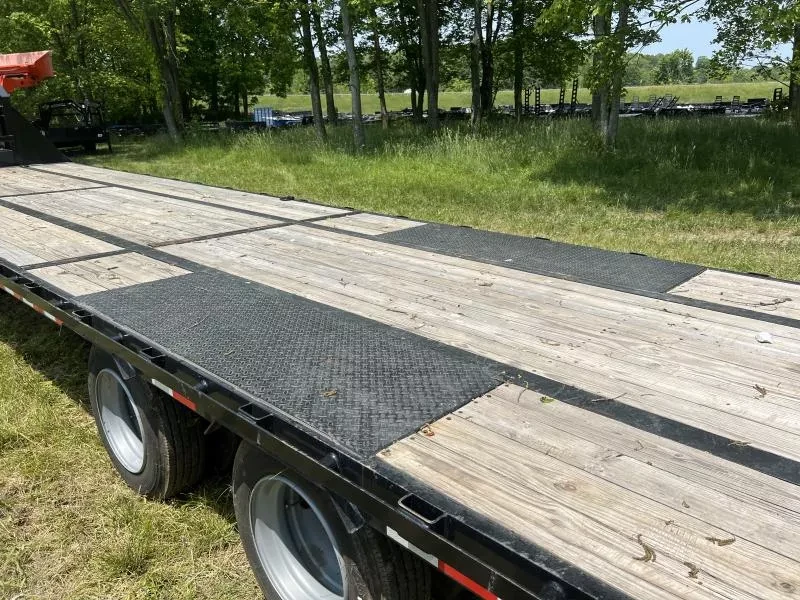

The 2023 Sure-Trac 102″ x 30′ Gooseneck Deckover Trailer, model ST-HDO10240-300G, is a nicely built 30K deckover designed to handle heavy equipment hauling with strength, stability, and everyday usability. This unit comes equipped with a 15,000 lb. axle upgrade, a pierced I-beam frame, and full-width universal ramps, giving it the load capacity and versatility that serious equipment haulers need.

The pierced frame design is a standout feature of this deckover, giving it one of the lowest deck heights in the industry at approximately 32 inches. This low profile, combined with the beavertail and ramp setup, creates a load angle comparable to a typical car hauler with a dovetail and ramps, making it far easier to load equipment than many higher-riding deckover trailers. The 12-inch I-beam mainframe provides proven strength and durability, while Cross Trac bracing, roughly four times stronger than a torque tube, ties the frame together to reduce twisting and flex during loading and hauling.

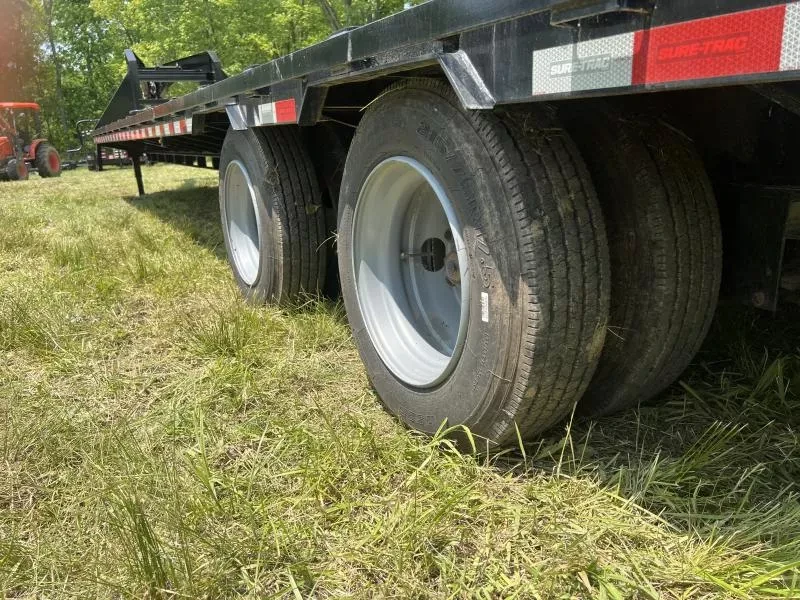

Underneath, heavy-duty slipper spring axles and self-adjusting brakes on both axles provide dependable stopping power and a stable ride, whether the trailer is loaded or empty. The trailer rides on 17.5-inch, 16-ply radial tires, offering longer tread life and a smoother ride than bias-ply alternatives.

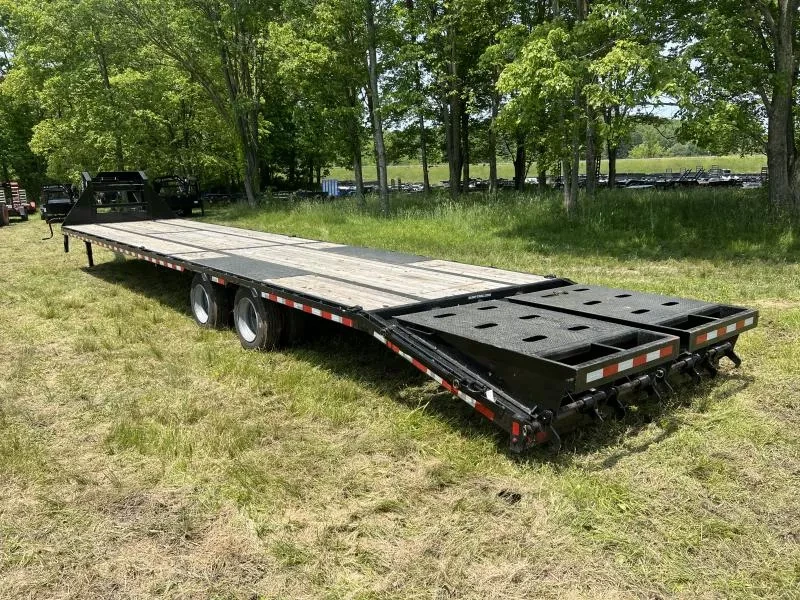

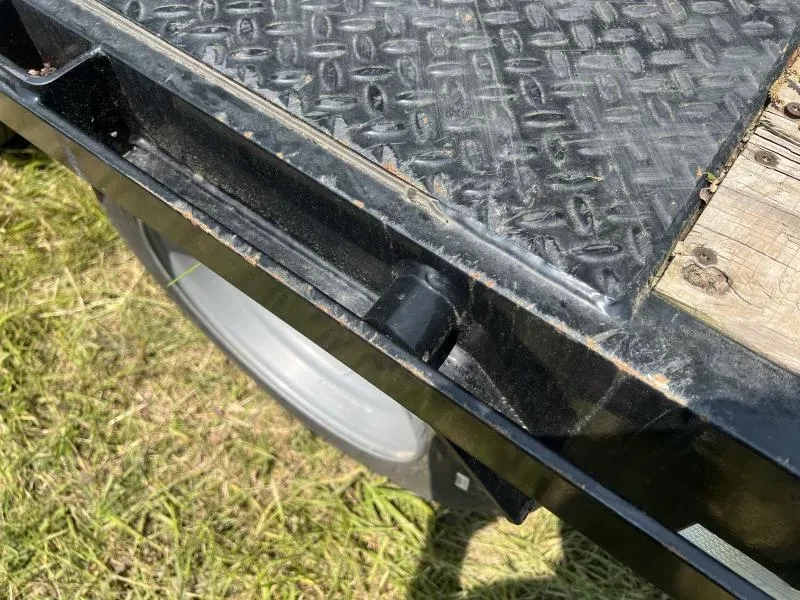

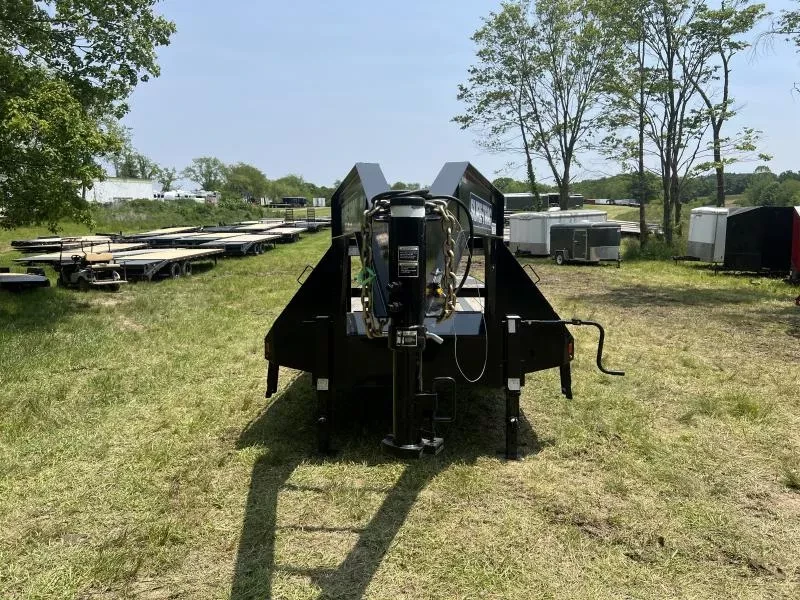

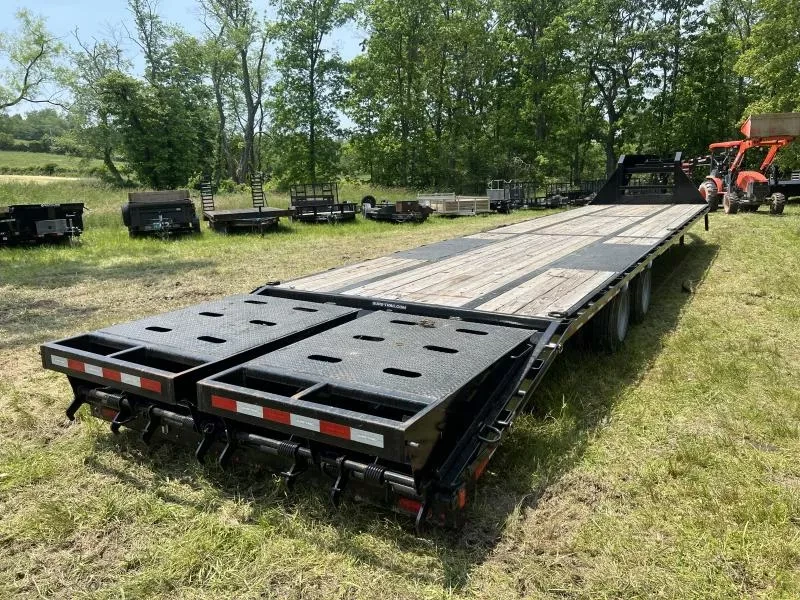

Loading is made easy with spring-assisted flip-over ramps that are wide and stable, featuring weep holes to shed water, cutouts that allow a self-leveled beavertail for items like round bales, and a notch that cups under the tubular rear bumper to prevent truck bounce during loading. Dual 12K bolt-on drop-leg jacks provide stability for this longer gooseneck model, and the trailer includes a full-width front toolbox along with neck gussets for added structural support in the gooseneck.

This deckover is loaded with tie-down options, including heavy-duty D-rings, stake pockets on 2-foot centers, chain spools, and a full-length rub rail, giving operators plenty of ways to secure a wide range of loads. Additional features include pressure-treated decking, an adjustable coupler, a spare tire mount, integrated side steps, LED lighting, and a sealed wiring harness with molded brake connections for reliable, low-maintenance operation.

Finish quality on this trailer stands out as well, with solid welds, an iron phosphate wash steel prep, and a painted underside, details that reflect the above-average build quality found throughout this model. As a used unit, this trailer also qualifies for no FET tax, an additional savings of roughly $3,000.

This 2023 Sure-Trac ST-HDO10240-300G Deckover Trailer is available now at Best Choice Trailers, ready to handle your toughest equipment hauling jobs.

Features:

Frame & Construction

• 12″ I-beam mainframe
• Pierced I-beam frame design for a low 32″ deck height
• Cross Trac bracing, approximately 4x stronger than a torque tube
• 16″ on-center floor crossmembers
• Pressure-treated decking

Axles, Brakes & Tires

• 15,000 lb. axle upgrade
• HD slipper spring axles
• Self-adjusting brakes on both axles
• 17.5″ 16-ply radial tires
• Easy Lube hubs

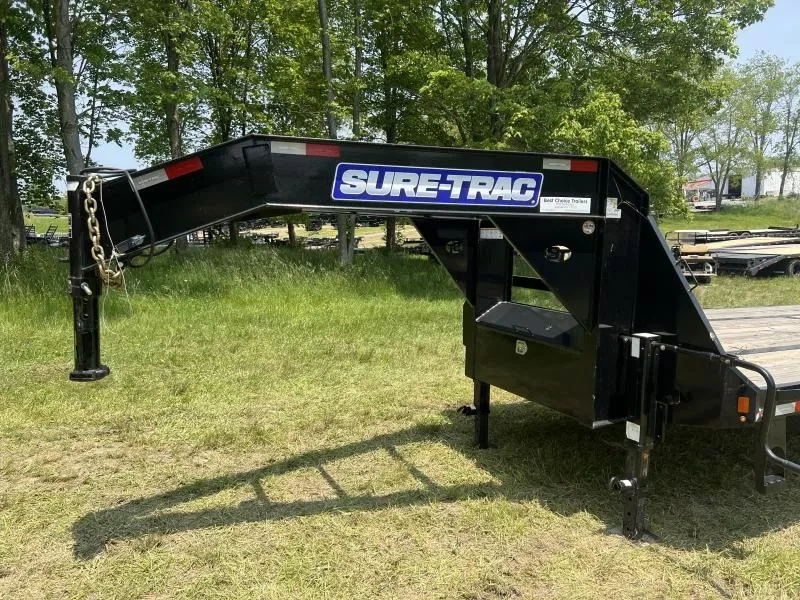

Towing & Gooseneck Features

• Gooseneck coupler, adjustable

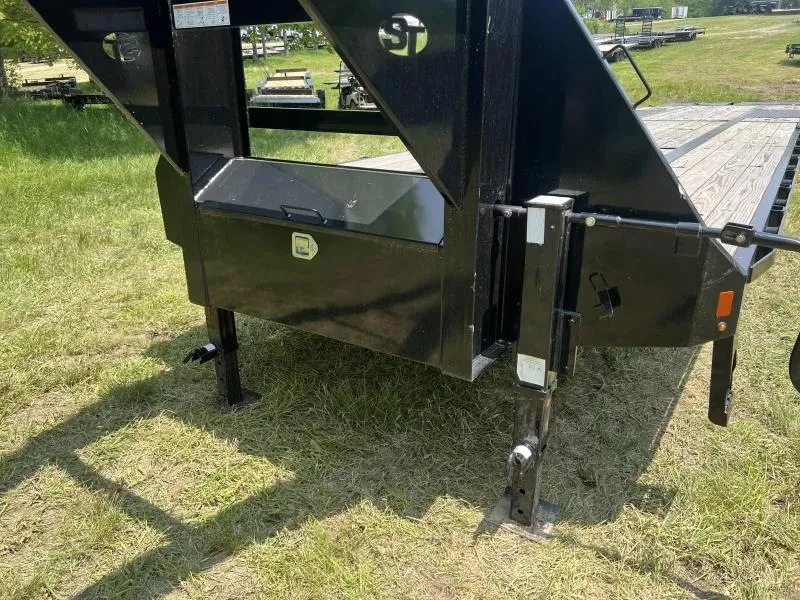

• Dual 12K bolt-on drop-leg jacks

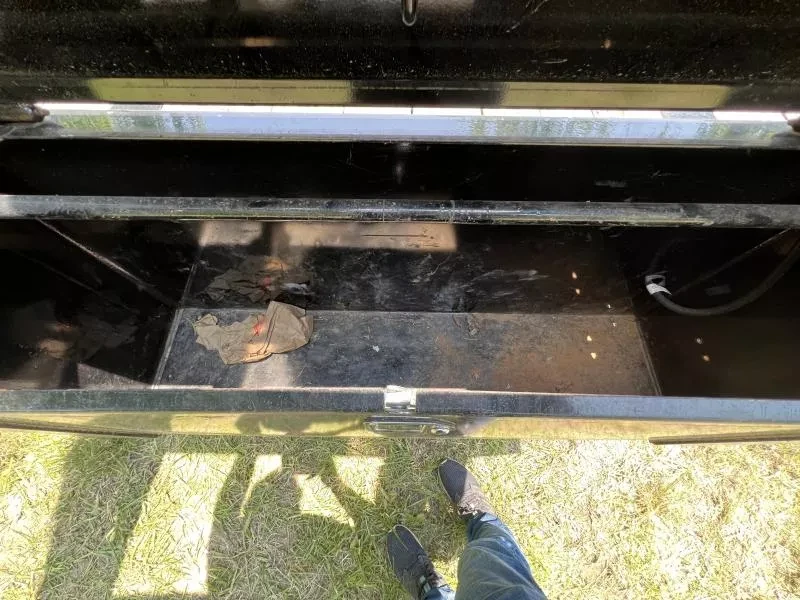

• Full-width front toolbox
• Neck gussets for added structural support

Ramps & Loading

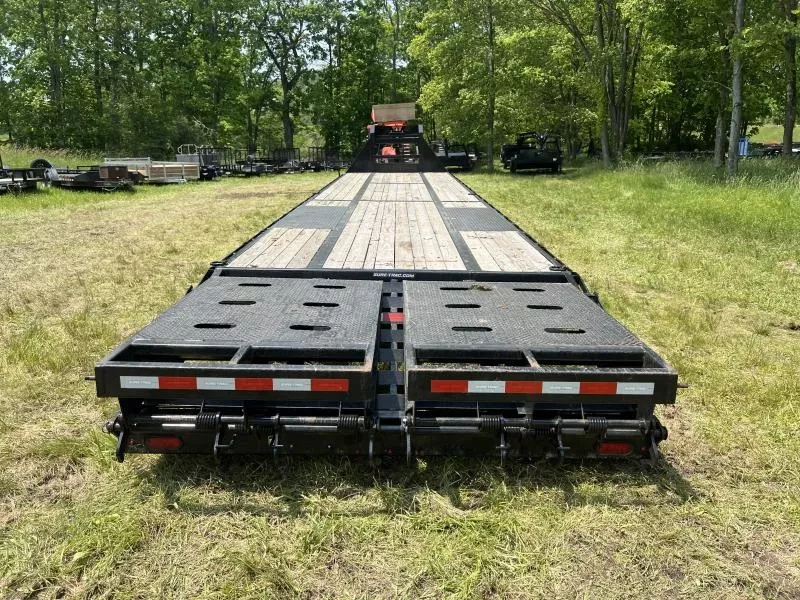

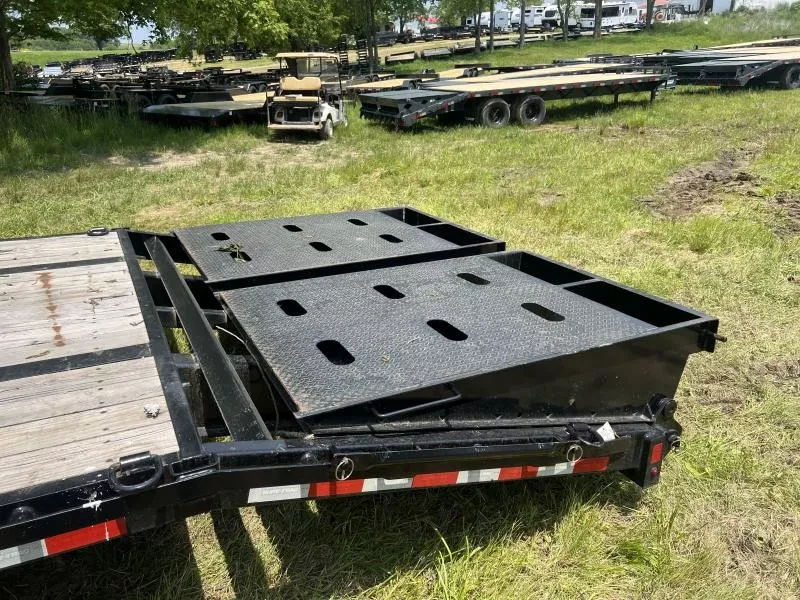

• Full-width universal flip-over ramps
• Spring-assisted ramp operation
• Weep holes for water drainage
• Cutouts for self-leveled beavertail loading
• Notch to prevent tow vehicle bounce during loading

Cargo Securement

• HD D-rings

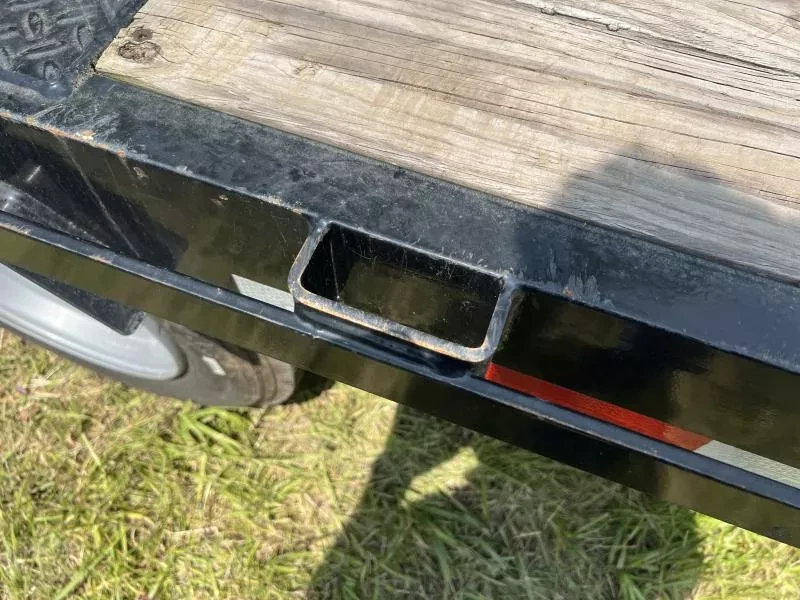

• Stake pockets on 2′ centers
• Chain spools
• Full-length rub rail

Convenience & Finish

• Spare tire mount
• Integrated side steps with traction cleats
• Tube-constructed rear bumper
• Sealed wiring harness with molded brake connections
• Iron phosphate wash steel prep
• Painted underside
• Bullet LED lighting

Ideal Applications

• Heavy equipment and machinery hauling
• Construction and industrial transport
• Commercial and fleet operations

Specifications:

• Model: ST-HDO10240-300G
• GVWR: 30,000 lbs.
• Deck Width: 102″
• Deck Length: 30′
• Trailer Type: Gooseneck Deckover
• Axle Upgrade: 15,000 lbs.
• Frame: Pierced 12″ I-beam mainframe
• Frame Bracing: Cross Trac bracing
• Deck Height: Approx. 32″ (pierced frame design)
• Crossmembers: 16″ on-center
• Flooring: Pressure-treated decking
• Suspension: HD slipper spring
• Brakes: Self-adjusting, both axles
• Tires: 17.5″, 16-ply radial
• Hubs: Easy Lube
• Coupler: Adjustable gooseneck
• Jacks: Dual 12K bolt-on, drop-leg
• Ramps: Full-width universal, spring-assisted flip-over
• Tie-Downs: HD D-rings, stake pockets (2′ centers), chain spools, full-length rub rail
• Lighting: Bullet LED
• Wiring: Sealed harness with molded brake connections
• Finish: Iron phosphate wash steel prep, painted underside
• Condition: Used
• Model Year: 2023
