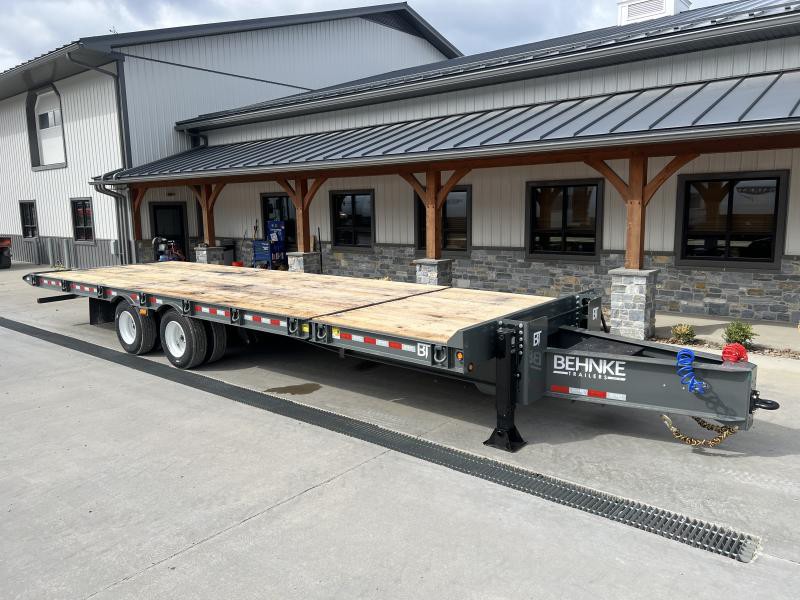

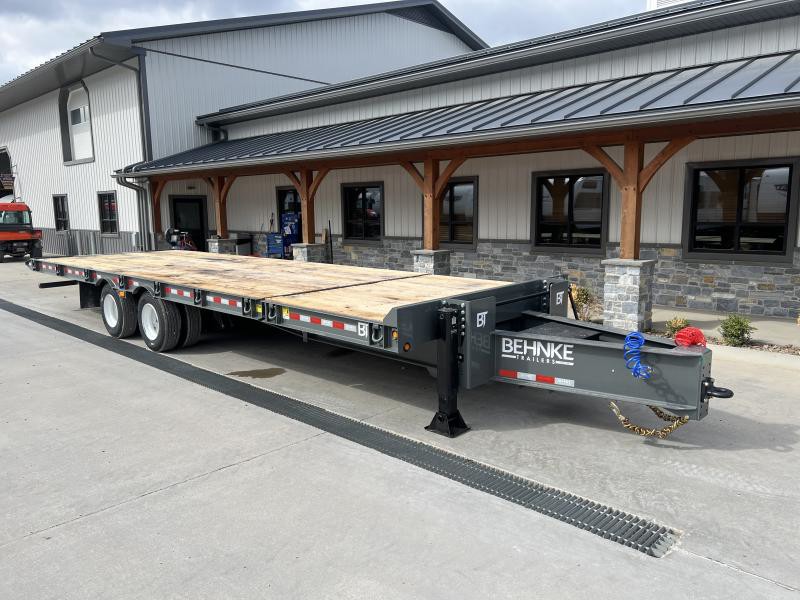

2025 Behnke FB8X30TPT-40L Air Brake Gravity Tilt Deckover Trailer – 102″ x 30′, 40,000 GVWR, Fabricated I-Beam Frame

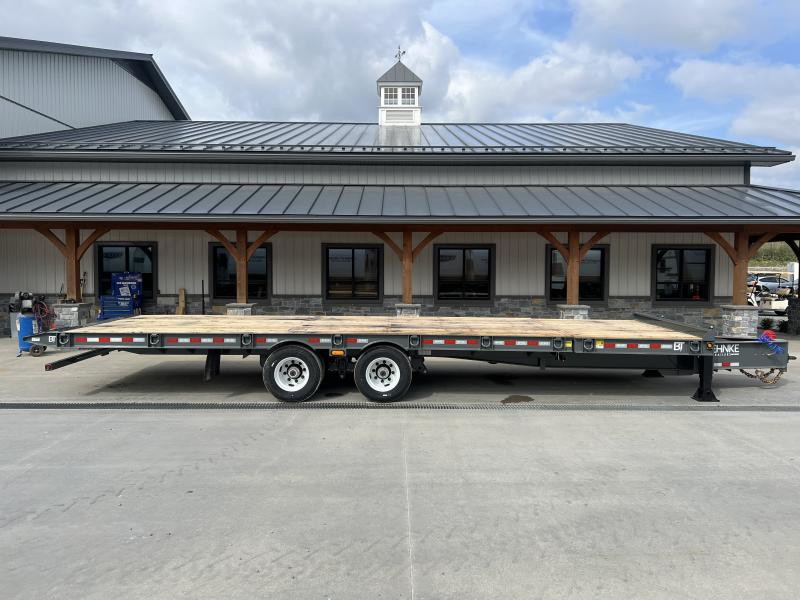

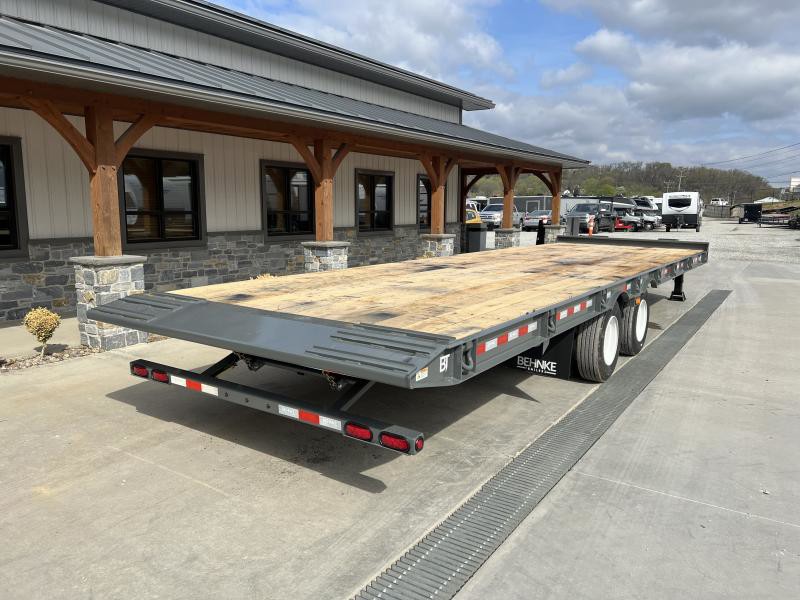

The 2025 Behnke 102″ x 30′ Air Brake Gravity Tilt Deckover Trailer, model FB8X30TPT-40L, is a tag-style deckover built specifically for hauling the heaviest equipment in a fleet. With a 40,000 lb. GVWR and a deck configuration featuring a 24-foot tilt section plus a 6-foot stationary deck, this trailer is engineered to handle large excavators, dozers, and other heavy machinery with ease.

At the core of this trailer is a custom fabricated 1-piece I-beam frame built from 80 KSI web and T1 flange steel, producing a beam with higher tensile strength than what standard steel mills typically produce. This is paired with 4-inch Jr. I-beam crossmembers on 16-inch centers, a noticeable upgrade over the channel crossmembers commonly found on competing models, giving the deck exceptional rigidity and load-bearing strength.

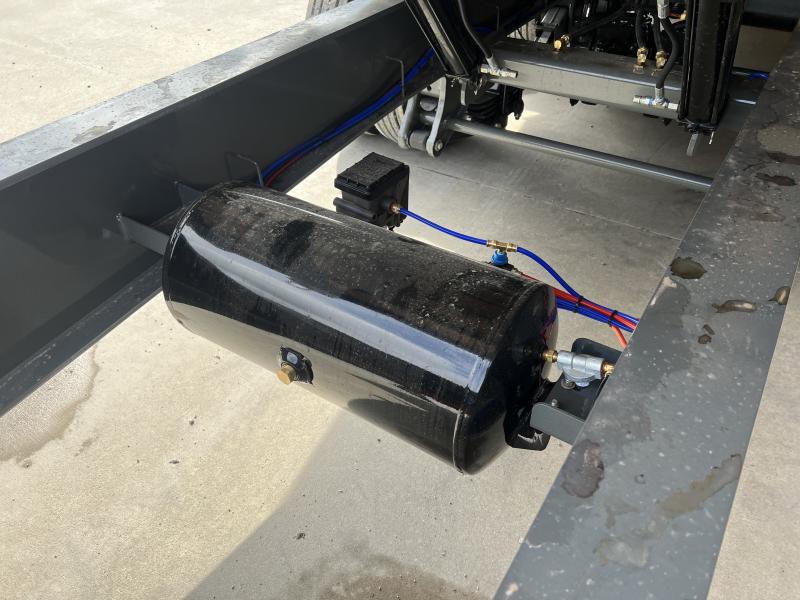

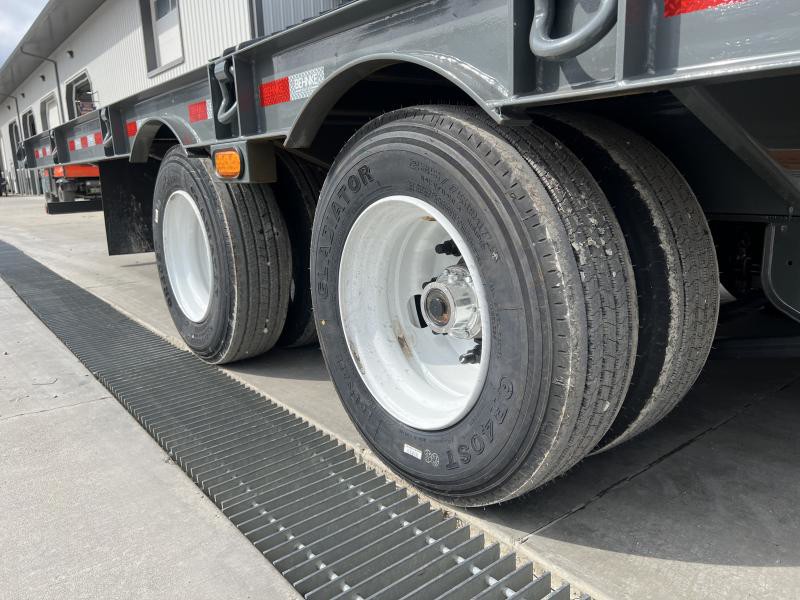

Air brakes come standard on this model, a hallmark of Behnke’s background in building larger commercial air-brake trailers. The trailer rides on heavy-duty 20,000 lb. Dexter oil bath axles, one equipped with auto slack adjust and park brake, the other with ABS, riding on Hutch H9700 suspension. Eight ST235/75R-17.5, 18-ply tires on 8-hole dual wheels provide the tire capacity needed to safely carry loads at the top of this trailer’s rating.

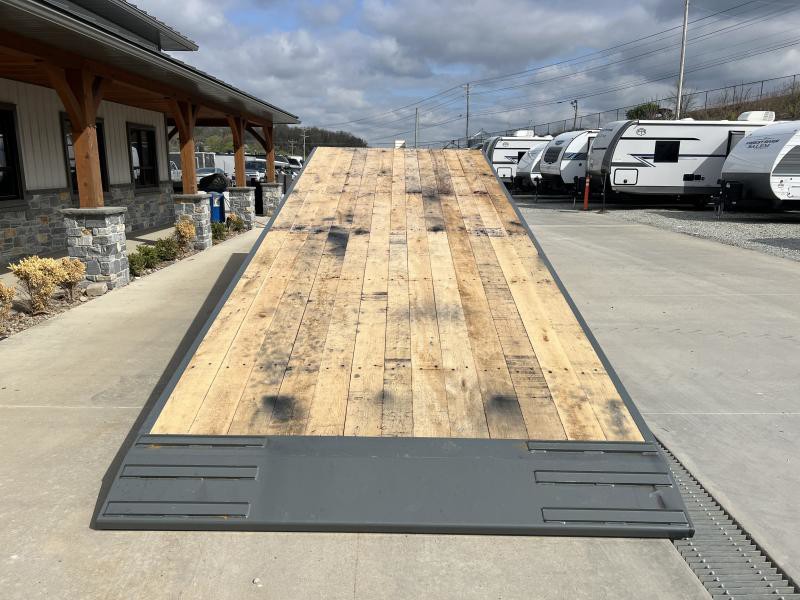

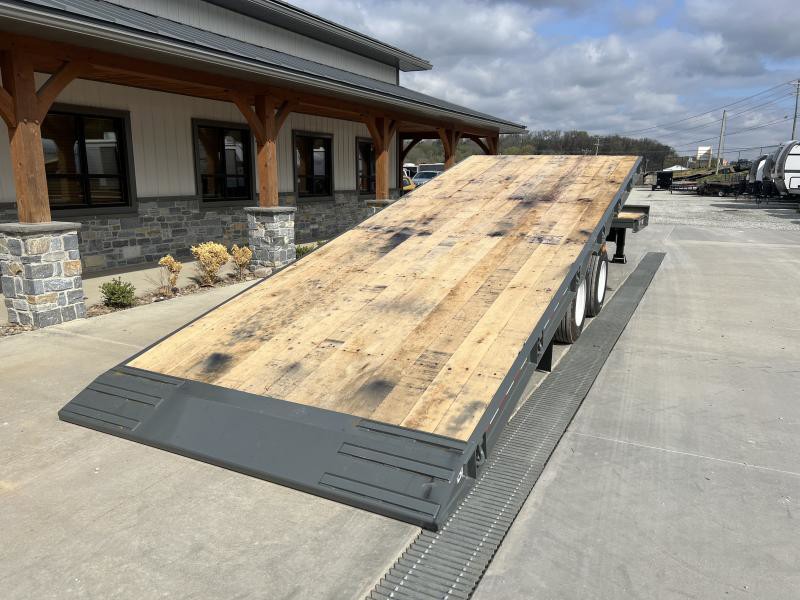

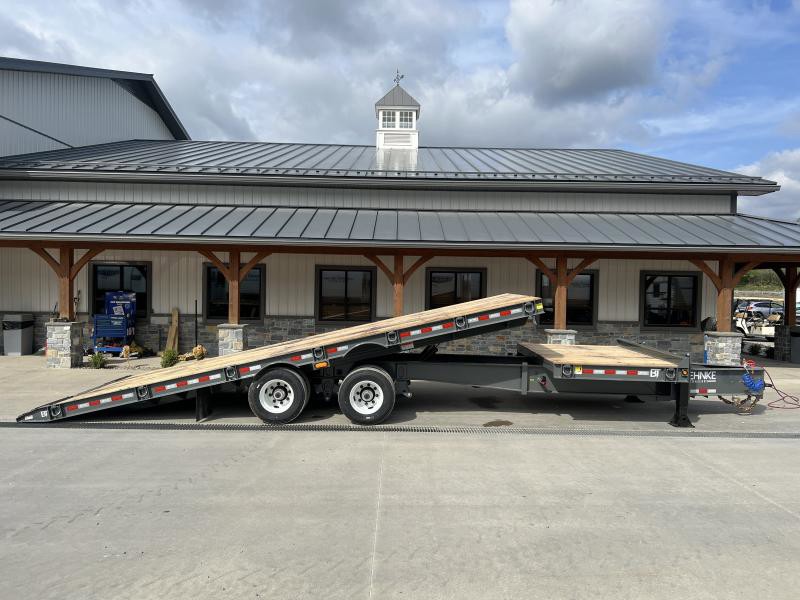

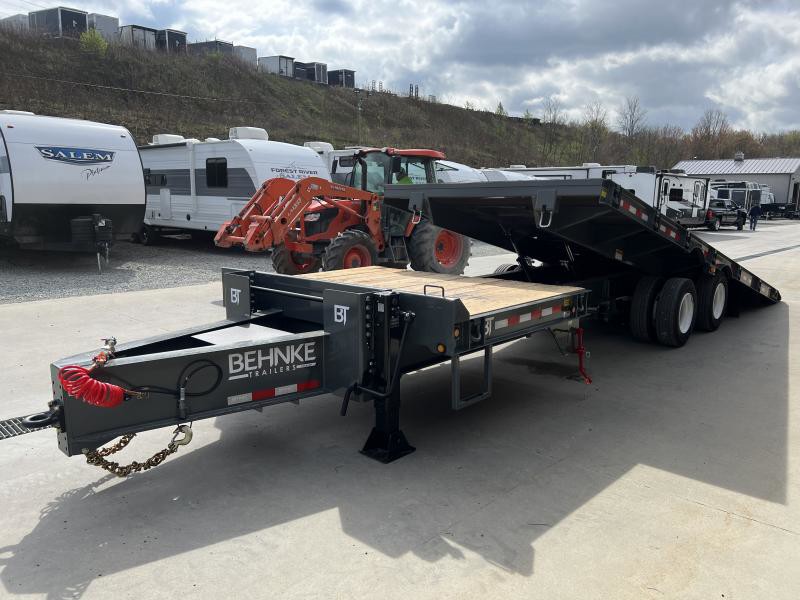

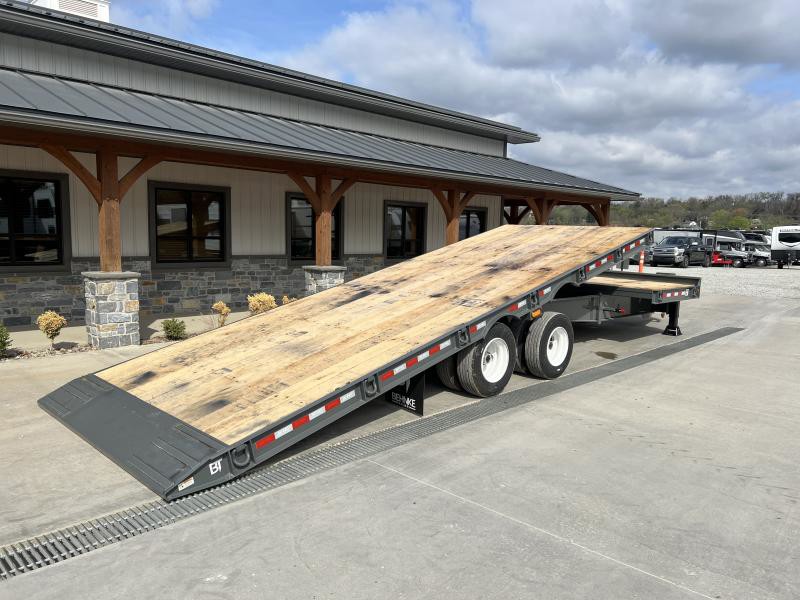

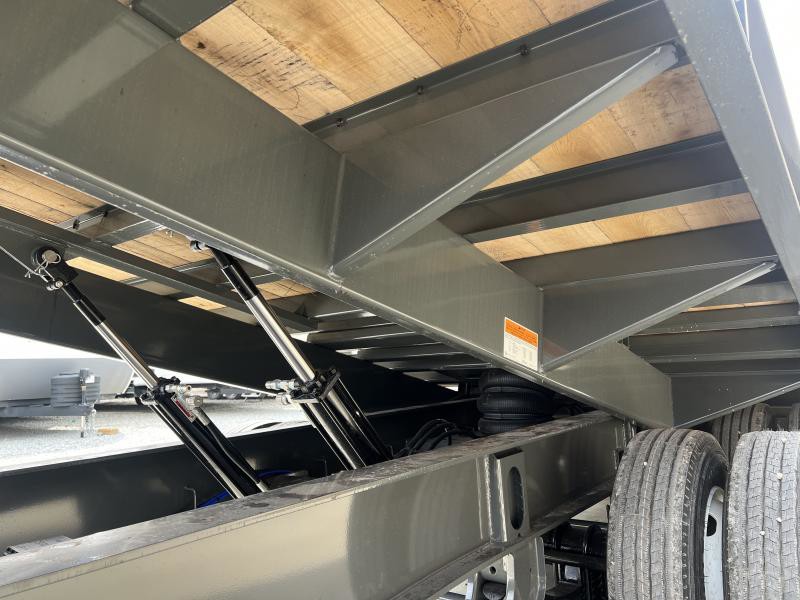

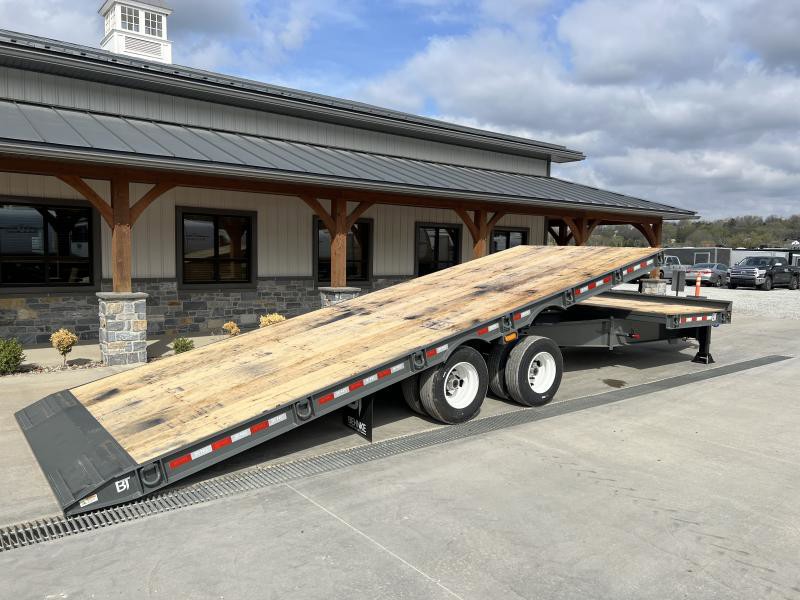

The gravity tilt deck operates on dual cushion cylinders with air assist, giving operators smooth, controlled tilt action when loading and unloading heavy equipment. Various traction options are available to add extra stability when loading in wet or muddy conditions, a valuable option for operators working in unpredictable jobsite environments.

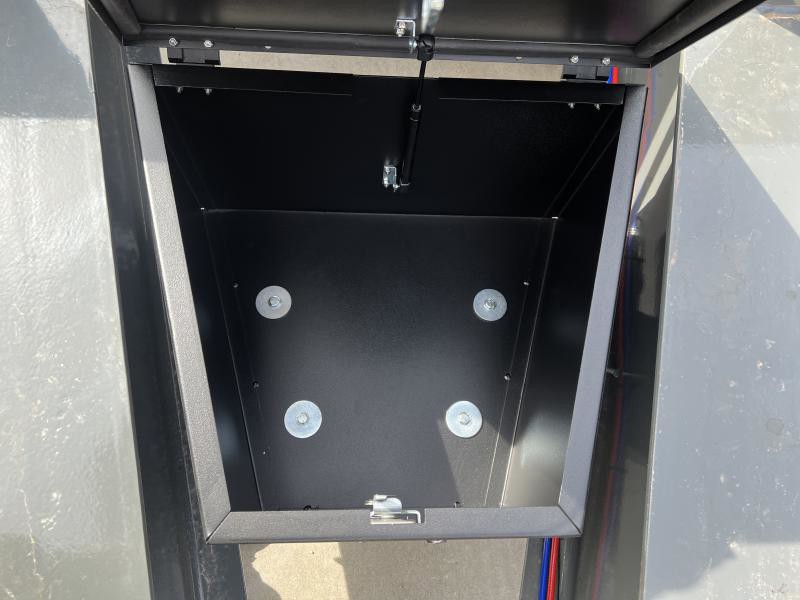

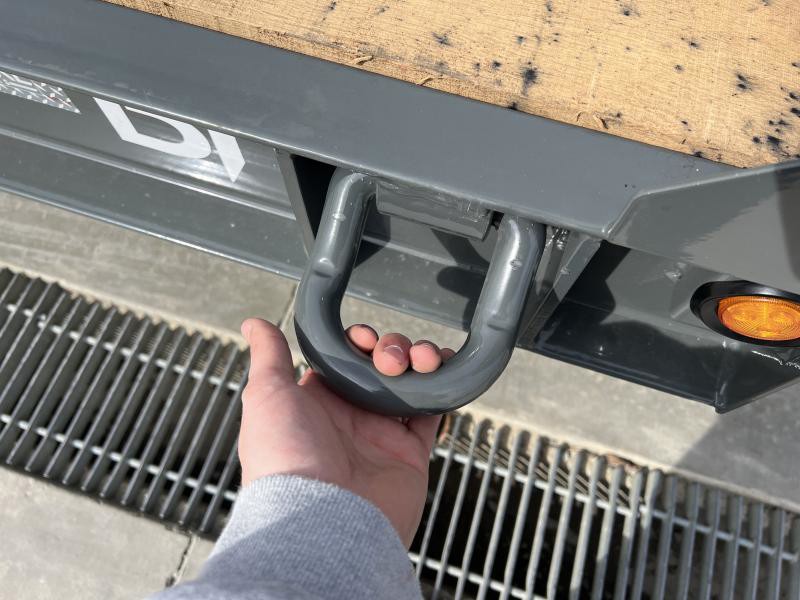

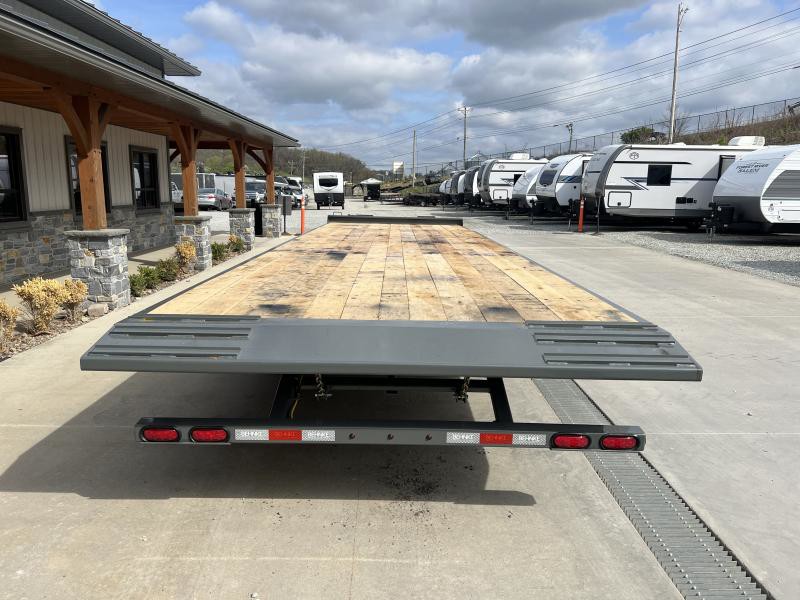

Tie-down capability is handled with 1-inch bent D-rings spaced every 4 feet along the side rails, giving operators consistent, reliable anchor points across the full length of the deck. The deck itself is built from 1-1/2-inch rough oak, a durable decking material suited to repeated heavy equipment loading. A V-style toolbox mounted in the tongue provides convenient storage without taking up deck space.

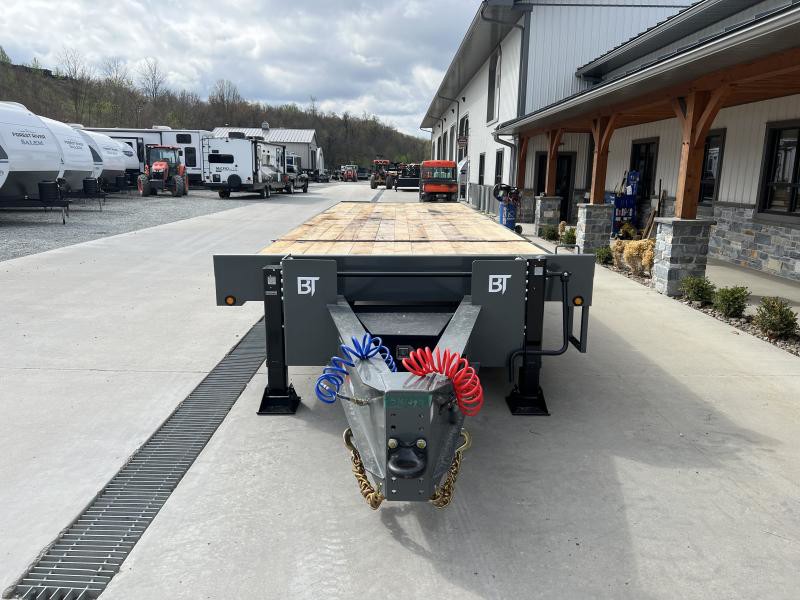

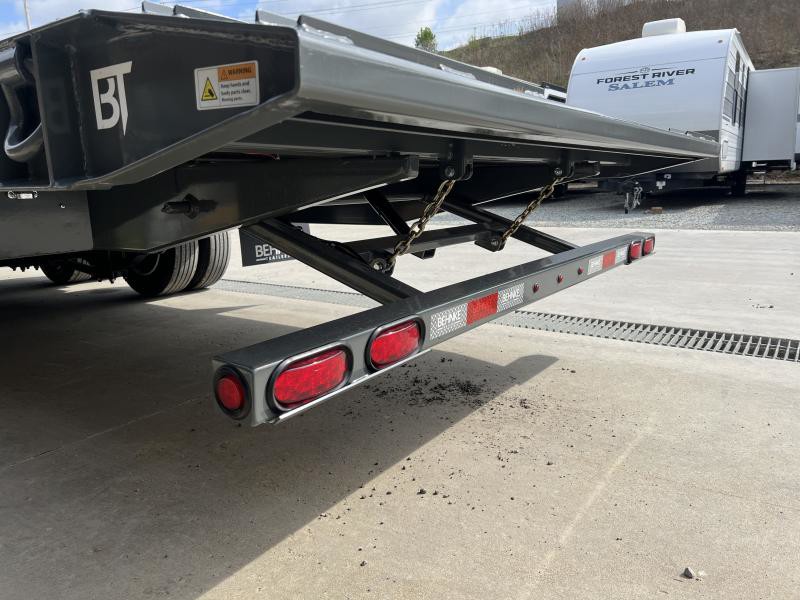

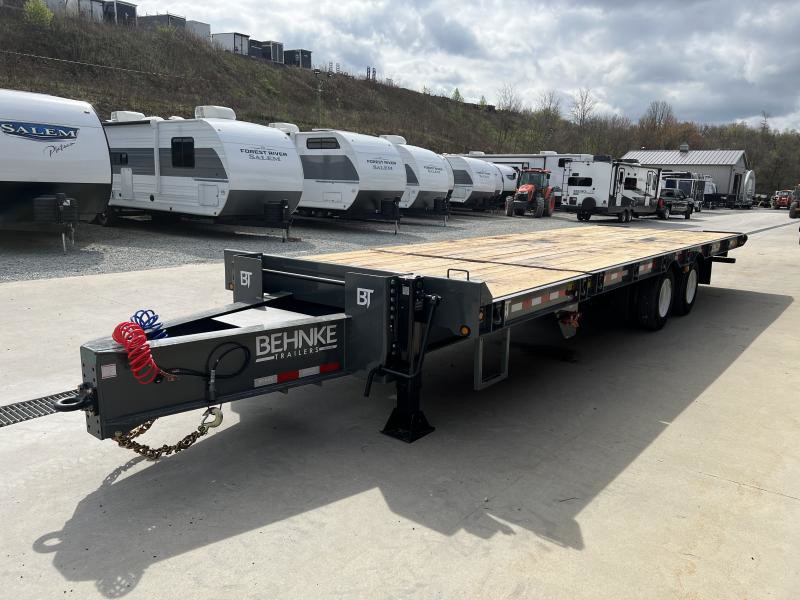

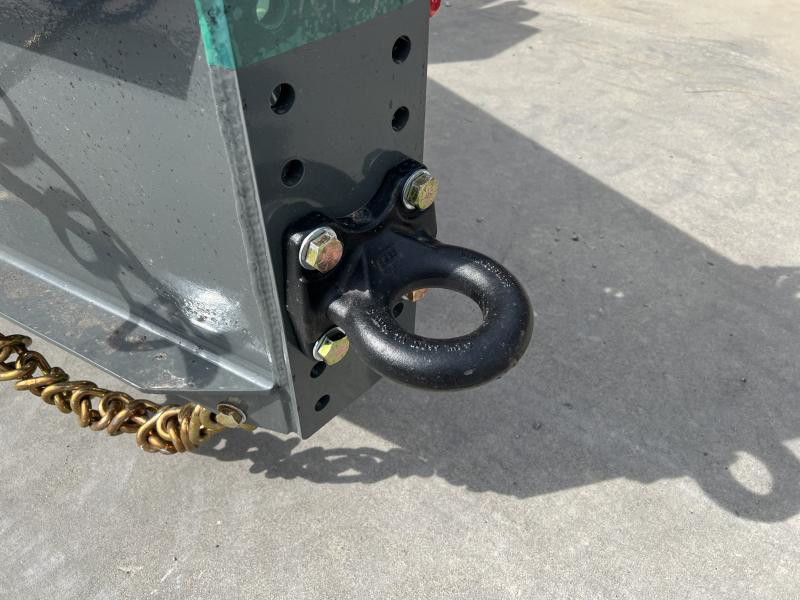

Towing is handled through a 3-inch pintle eye rated to 90,000 lbs., paired with dual dual-speed semi-style landing gear that makes hookup and setup manageable despite this trailer’s substantial size and weight. Rubber-mounted LED lighting, a modular wiring harness, reflector tape, and mud flaps round out a well-equipped, road-ready package, finished with a bead blasted, acid washed, zinc-rich primed, and powder coated finish for long-term corrosion resistance.

Behnke Brothers has built a strong reputation, backed by outstanding customer feedback, largely rooted in their experience building larger air-brake trailers. That same engineering discipline, from Dexter axles and Jost jacks to fabricated I-beam construction, carries through to this deckover tilt model, making it a dependable choice for fleets and operators who haul heavy equipment on a regular basis.

This 2025 Behnke FB8X30TPT-40L Air Brake Gravity Tilt Deckover Trailer is available now at Best Choice Trailers, built to move your heaviest equipment safely and efficiently. Please note that pricing does not include the 12% FET tax.

Features:

Frame & Construction

• Custom fabricated 1-piece I-beam frame (80 KSI)
• 4″ Jr. I-beam crossmembers on 16″ centers (80 KSI)
• 8″ channel side rails
• Top frame: 10 x 2 x 1/4″ tube
• 1/4″ sheet fenders
• 37″ unloaded deck height

Axles, Brakes & Tires

• (2) 20,000 lb. Dexter heavy-duty oil bath axles
• Air brakes with auto slack adjust and park brake (axle 1)
• Air brakes with ABS (axle 2)
• Hutch H9700 suspension

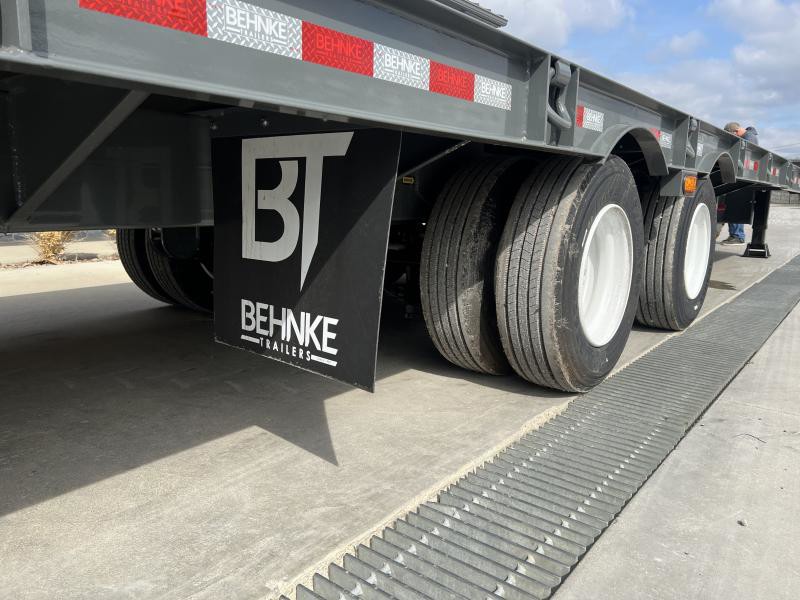

• (8) ST235/75R-17.5, 18-ply tires on 8-hole dual wheels

Tilt Deck System

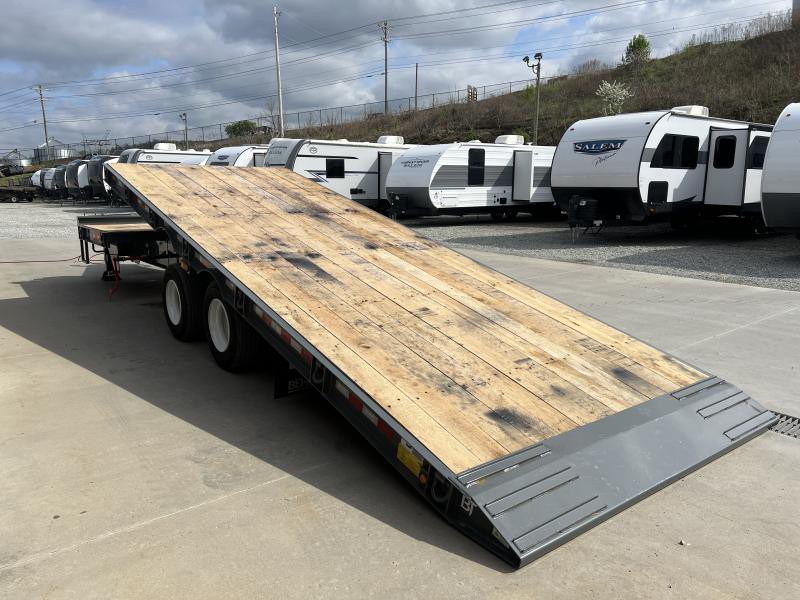

• 24′ gravity tilt deck + 6′ stationary deck

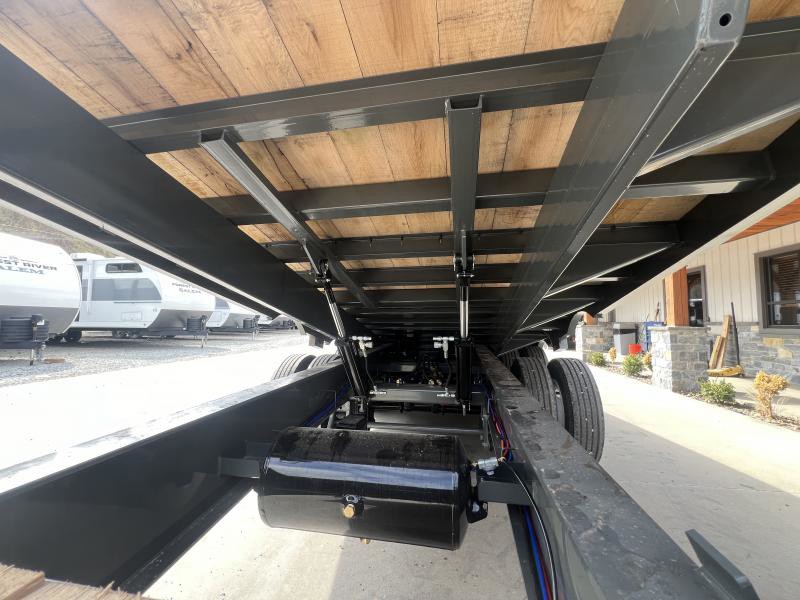

• Dual cushion cylinders with air assist
• Smooth, controlled tilt operation

Towing & Support

• 3″ pintle eye hitch (90,000 lb. rated)

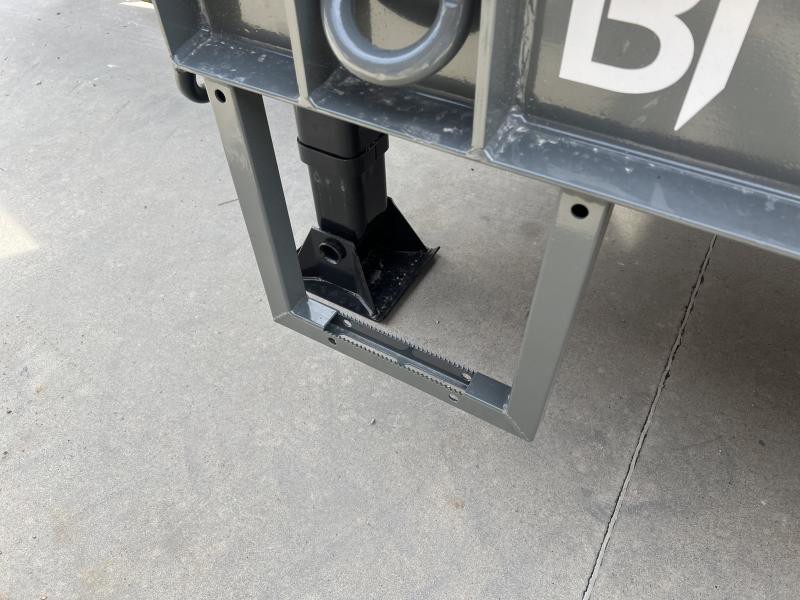

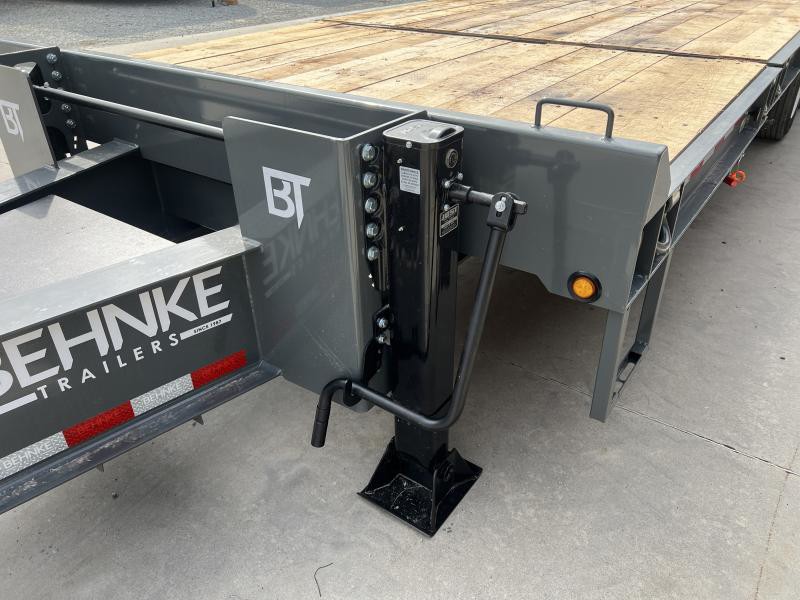

• (2) dual-speed semi-style landing gear
• (2) 1/2″ Grade 70 safety chains

Deck & Storage

• 1-1/2″ rough oak decking

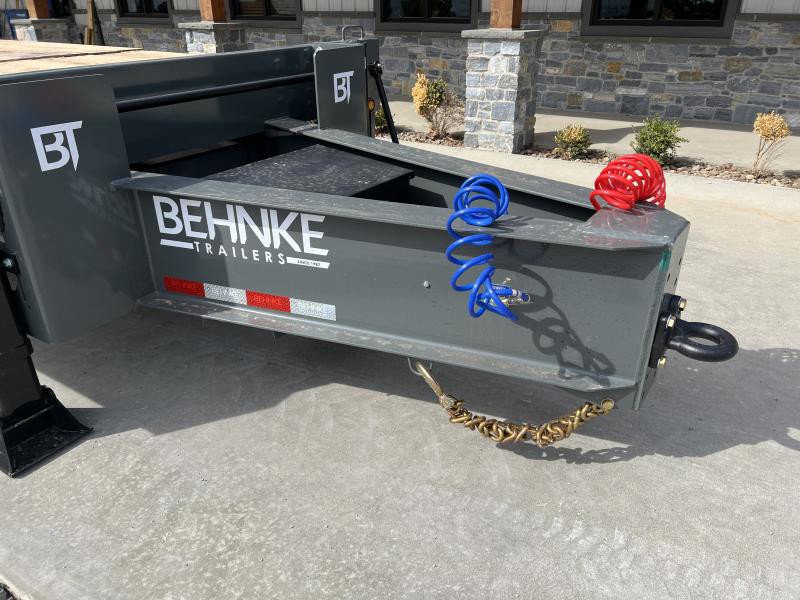

• V-style tongue-mounted toolbox
• 1″ bent D-rings every 4′ on side rail

Electrical & Finish

• Rubber-mounted LED flush-mount lighting
• Modular wire harness
• Semi electrical plug
• Reflector tape and mud flaps
• Bead blasted, acid washed, zinc-rich primed, powder coated finish

Ideal Applications

• Heavy equipment and machinery hauling
• Fleet and commercial trucking operations
• Construction and industrial transport

Specifications:

• Model: FB8X30TPT-40L
• GVWR: 40,000 lbs.
• Empty Weight: 11,180 lbs.
• Length: 6′ stationary + 24′ tilt (product features listed as 4′ + 26′ variant)
• Width: 102″
• Deck Height (unloaded): 37″
• Frame: 1-piece fabricated I-beam (80 KSI)
• Side Rails: 8″ channel
• Crossmembers: 4″ Jr. I-beams (80 KSI), 16″ centers
• Fenders: 1/4″ sheet
• Axles: (2) 20,000 lb. Dexter, heavy-duty oil bath
• Brakes: Air brakes — auto slack adjust/park brake (axle 1), ABS (axle 2)
• Suspension: Hutch H9700
• Tires/Wheels: (8) ST235/75R-17.5, 18-ply, 8-hole dual wheels
• Jacks: (2) dual-speed semi-style landing gear
• Hitch: 3″ pintle eye, 90,000 lb. rated
• Safety Chains: 1/2″ Grade 70 (2)
• Tie-Downs: 1″ bent D-rings every 4′ (no stake pockets or rub rail)
• Storage: V-style tongue-mounted toolbox
• Decking: 1-1/2″ rough oak
• Tilt System: Gravity tilt, dual cushion cylinders with air assist
• Lighting: LED, rubber-mounted, flush
• Electrical Plug: Semi plug
• Wiring: Modular harness
• Finish: Bead blasted, acid washed, zinc-rich primed, powder coated
• Available Colors: Black, Red, Blue, Gray, Yellowstone
• Pricing Note: Does not include 12% FET tax
• Model Year: 2025
